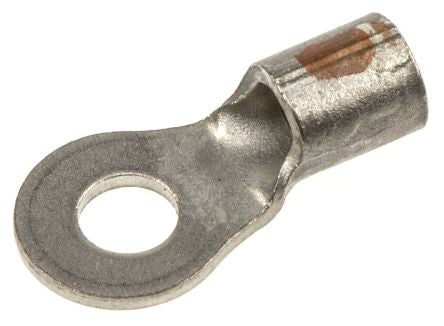

TERMINAL,CRIMP,RING,HIGH TEMP,10-12AWG

$0.00

This product is only available upon request. Contact us for a quote.

Rasgas Mat.No.1533495

CRIMP TERMINAL
RING 2.7-6.6 X M4 650DEG
ROHS COMPLIANT: YES
AREA, WIRE SIZE MIN: 2.7MM2
AREA, WIRE SIZE MAX: 6.6MM2;
WIRE SIZE, AWG MIN: 12AWG;
WIRE SIZE, AWG MAX : 10AWG;
STUD SIZE : 4MM;
COLOUR : NICKEL;
APPROVAL BODIES: UL,CSA
MATERIAL CONTACT: NICKEL
TEMPERATURE, OPERATING(A) MAX: 650 DEGC;
TERMINATION METHOD : CRIMP
